Syncfusion - GridControl - Sync Scrolling of the Two Gridcontrols

-
Syncfusion - GridControl  -  Sync Scrolling of the Two Gridcontrols

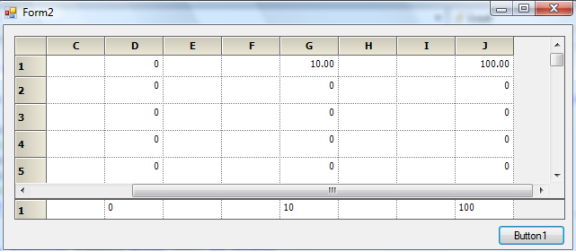

Note: - With this when first is scrolling horizontally below grid will also screen as per the column visible

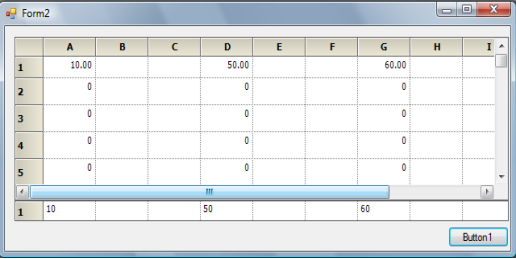

Note : Example above has two GridControl one user interactive and other is Disable to show
           summary totals for grid above. To avoid Label driver Totals.

Example show sync between to grid on Horizontal scroll of grid1

Code : Form Load Event

GridControl2.HScrollBehavior = GridScrollbarMode.Shared
GridControl2.UseSharedScrollBars = True
GridControl2.HScrollBar.InnerScrollBar =GridControl1.HScrollBar.InnerScrollBar

‘This Required in case when Vertical Scroll need to be synced
GridControl2.VScrollBehavior = GridScrollbarMode.Shared
GridControl2.VScrollBar.InnerScrollBar =GridControl1.VScrollBar.InnerScrollBar

Note:- for above example Vertical Scrollbasr Sync in not required
